Kafka Events Connection

DataForge integrates with Kafka Event Topics for batch or stream source ingestion and output publishing. For Kafka setup, see the Apache Kafka documentation. Authentication examples below use Confluent.

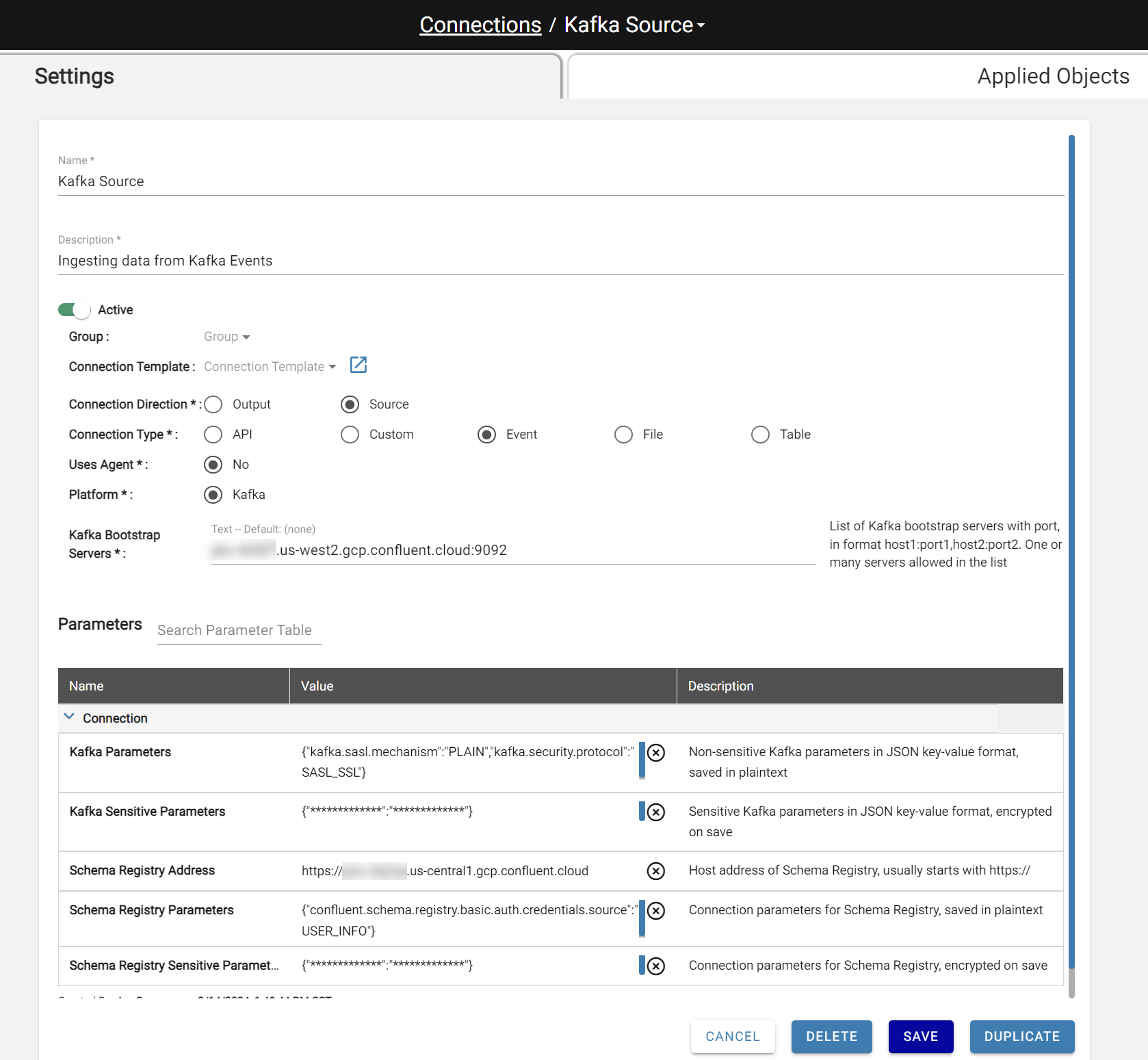

Source Connection

Create a new connection with the following settings:

• Connection Direction:Source
• Connection Type:Event
• Uses Agent:No
• Platform:Kafka
• Kafka Boostrap Servers*: Enter hosted server location of Kafka

Expand Parameters and fill in:

• Kafka Parameters: Configure optional non-sensitive parameters for connecting to Kafka.
• Example to configure PLAIN authentication: {"kafka.sasl.mechanism":"PLAIN","kafka.security.protocol":"SASL_SSL"}
• Kafka Sensitive Parameters: Configure sensitive parameters for connecting to Kafka.

• Example to configure PLAIN authentication (typically API keys used for username/password):

  {"kafka.sasl.jaas.config":"kafkashaded.org.apache.kafka.common.security.plain.PlainLoginModule required username=\"\" password=\"\";"} - Schema Registry Address:Host address of the schema registry - Schema Registry Parameters: Configure optional non-sensitive parameters for connecting to Kafka Schema Registry. - Example: {"confluent.schema.registry.basic.auth.credentials.source":"USER_INFO"} - Schema Registry Sensitive Parameters: Configure optional sensitive parameters for connecting to Kafka Schema Registry. - Example using API keys for Schema Registry:

  {"confluent.schema.registry.basic.auth.user.info":":"}

Source Settings

Create a new Source with these settings:

• Processing Type: Batch or Stream
• Connection Type: Event
• Connection: Select a Kafka source connection
• Topic Name: Kafka topic name from the connection server

If the selected connection has a Schema Registry defined, the parameters below are optional. If not, expand Ingestion Parameters to fill in the required fields.

Parameter Name	Value	Description
Select List	, value.	Applies specified comma-separated select list to ingested data, allowing to expand or hide columns. Expands struct attributes to unique columns via struct. For Kafka events, value. is a common use case.
Value Schema Type	binary, avro, avro_from_registry, json	Schema type for value schema. Used to associate event with schema during ingestion
Key Schema Type	binary, avro, avro_from_registry, json	Schema type for key schema. Used to associate event with schema during ingestion
Value Schema	Dependent on Value Schema Type. Binary: not required Avro: JSON (Avro) format JSON: JSON (DDL) format	Json (avro) or text (json DDL) specified when not using schema registry
Key Schema	Dependent on Key Schema Type. Binary: not required Avro: JSON (Avro) format JSON: JSON (DDL) format	Json (avro) or text (json DDL) specified when not using schema registry
Key Subject	Open text	Schema registry subject for key schema
Value Subject	Open text	Schema registry subject for value schema
Kafka Parameters	JSON	Non-sensitive Kafka parameters in JSON key-value format, saved in plaintext
Kafka Sensitive Parameters	JSON	Sensitive Kafka parameters in JSON key-value format, saved in plaintext
Starting Offsets	earliest, deltas, JSON format Example: {"topic":{"<partition_no":offset}}	Starting offsets for topic, options are "earliest","deltas" or a json string. Only applies to first input if "deltas" is used as value
Ending Offsets	latest or JSON format Example: {"topic":{"<partition_no":offset}}	Ending offsets for topic, options are "latest" or a json string
Strip Leading Binary Bytes	Number	Remove byte amount of binary data from value record that points to schema registry
Number of Topic Partitions	Number	Define if "deltas" is specified for starting_offsets but some partitions on the topic have no data. This will fill in the delta offsets for missing partitions with "-2" to get earliest on those partitions, preventing ingestion error

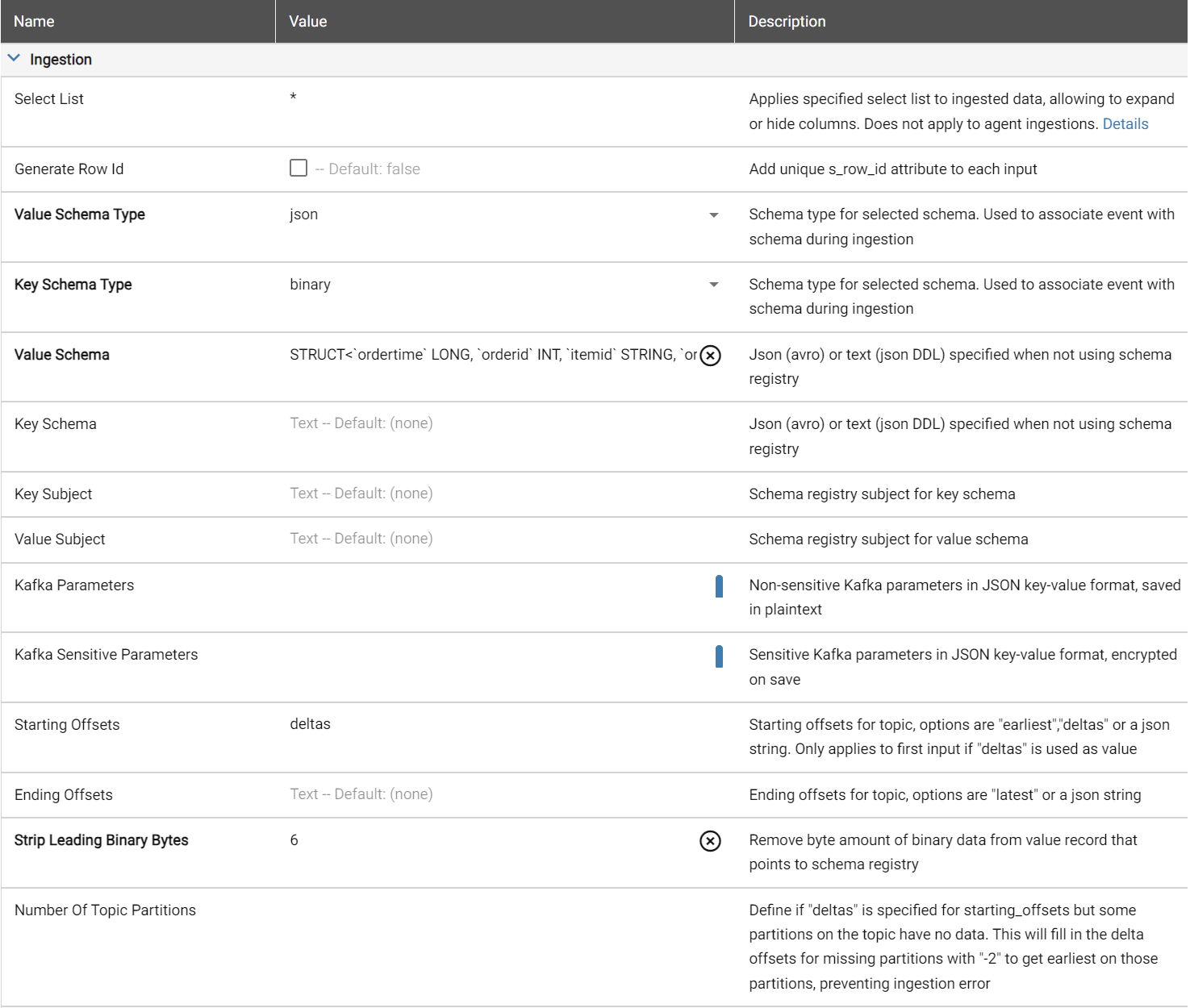

Example of no schema registry JSON deltas format

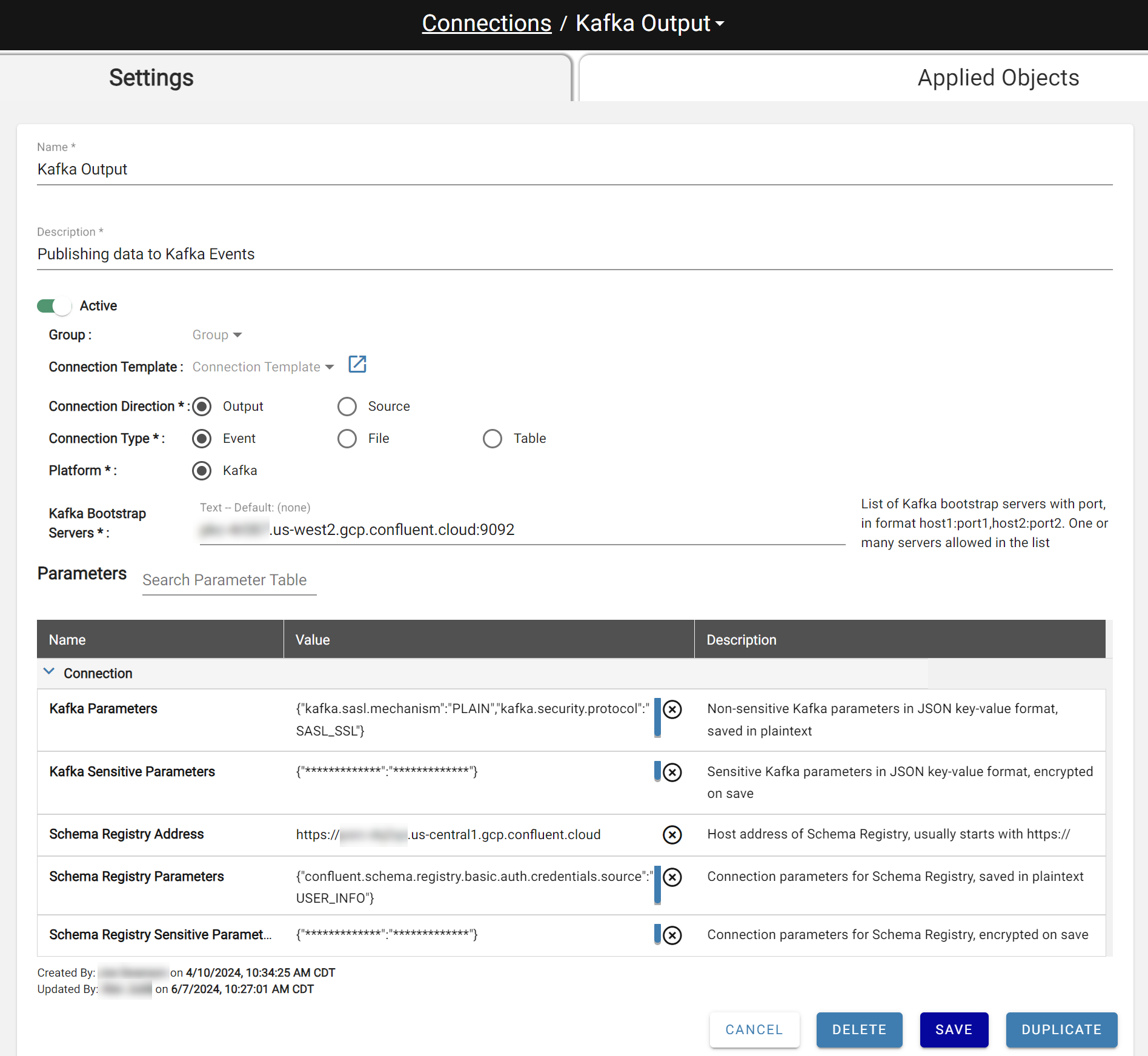

Output Connection

Create a new connection with the following settings:

• Connection Direction:Output
• Connection Type:Event
• Platform:Kafka
• Kafka Boostrap Servers*: Enter hosted server location of Kafka

Expand Parameters and fill in:

• Kafka Parameters: Configure optional non-sensitive parameters for connecting to Kafka.
• Example to configure PLAIN authentication: {"kafka.sasl.mechanism":"PLAIN","kafka.security.protocol":"SASL_SSL"} to
• Kafka Sensitive Parameters: Configure sensitive parameters for connecting to Kafka.

• Example to configure PLAIN authentication:

  {"kafka.sasl.jaas.config":"kafkashaded.org.apache.kafka.common.security.plain.PlainLoginModule required username=\" " password=\"";"} - Schema Registry Address:Host address of the schema registry - Schema Registry Parameters: Configure optional non-sensitive parameters for connecting to Kafka Schema Registry. - Example: {"confluent.schema.registry.basic.auth.credentials.source":"USER_INFO"} - Schema Registry Sensitive Parameters: Configure optional sensitive parameters for connecting to Kafka Schema Registry. - Example:

  {"confluent.schema.registry.basic.auth.user.info":""}

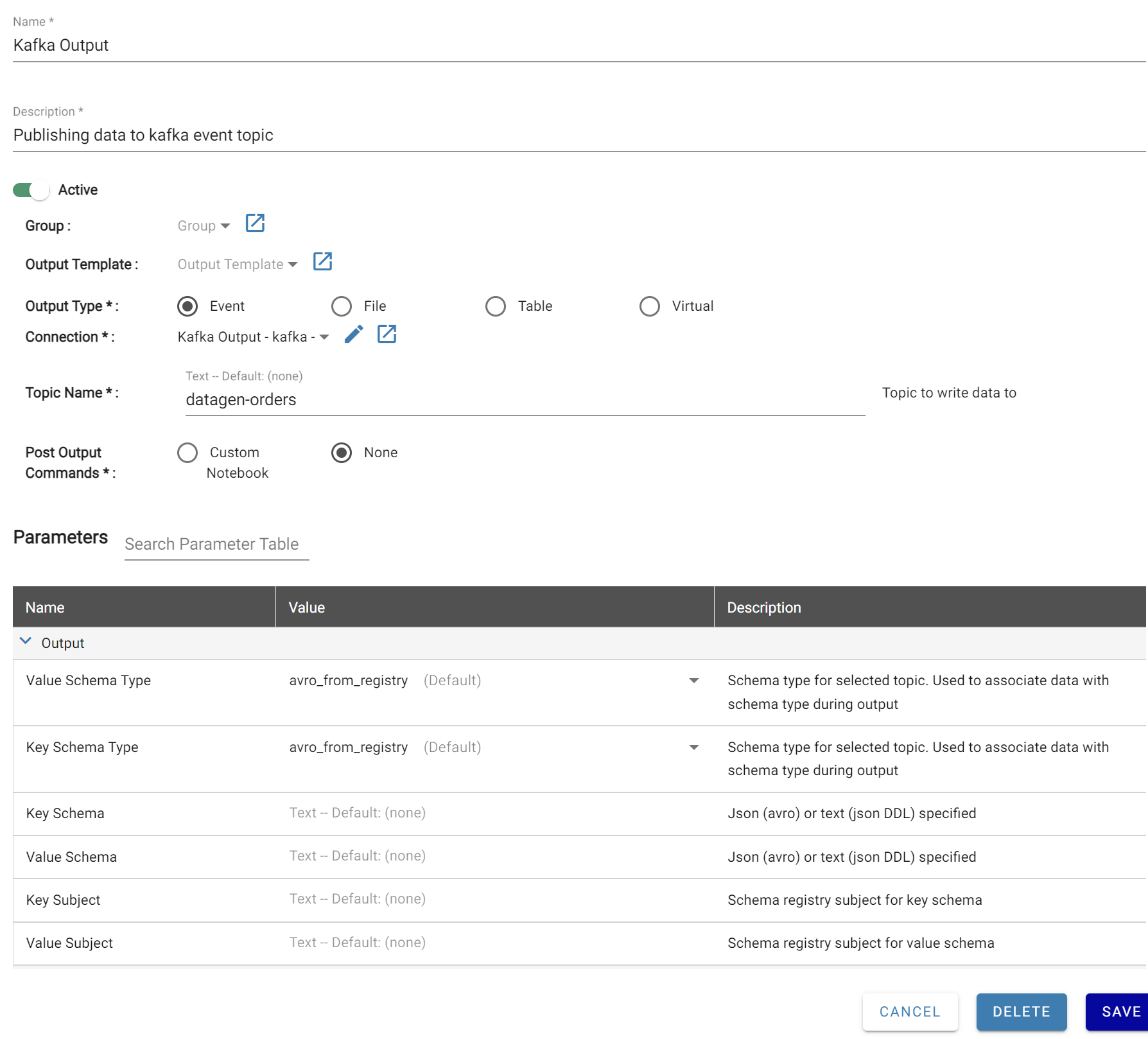

Output Settings

Create a new Output with these settings:

• Output Type: Event
• Connection: Select a Kafka output connection
• Topic Name: Kafka topic name from the connection server

If the selected connection has a Schema Registry defined, the parameters below are optional. If not, expand Output Parameters to fill in the required fields.

Parameter Name	Value	Description
Value Schema Type	string, avro, avro_from_registry, json	Schema type for value schema. Used to associate event with schema during output
Key Schema Type	string, avro, avro_from_registry, json	Schema type for key schema. Used to associate event with schema during output
Value Schema	Dependent on Value Schema Type. String: not required Avro: JSON (Avro) format JSON: JSON (DDL) format	Json (avro) or text (json DDL) specified
Key Schema	Dependent on Key Schema Type. String: not required Avro: JSON (Avro) format JSON: JSON (DDL) format	Json (avro) or text (json DDL) specified
Key Subject	Open text	Schema registry subject for key schema
Value Subject	Open text	Schema registry subject for value schema

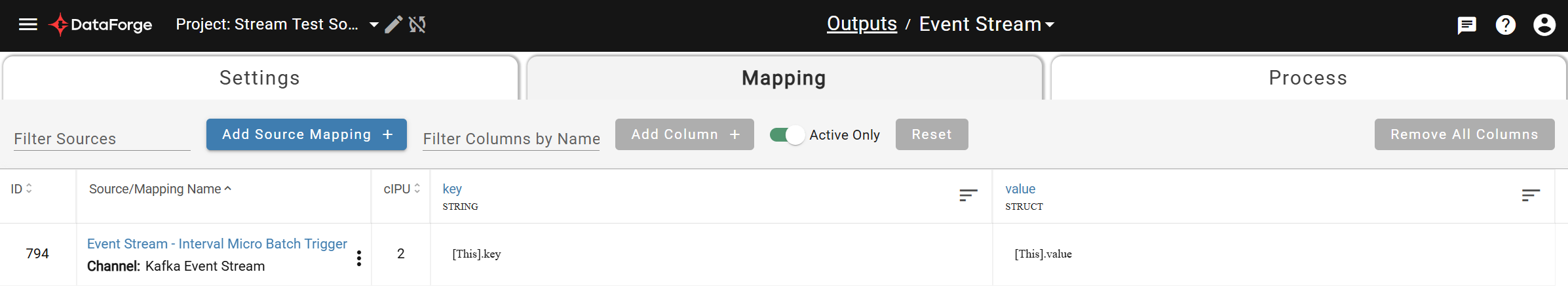

Output Mapping

Kafka Outputs only allow sources with Full, Key, or None refresh types for Source Mappings. Kafka Outputs only support two columns, key and value. When the Output settings are first saved, these columns will be automatically added to the Mapping definition.

The Key and Value columns can only be data types of either String or Struct.

To convert a String into Struct:

• Open the Source mapped to the output
• Create a rule that builds the Struct result referencing the String attribute
• Map the Struct rule attribute to the output mapping column
